GRL USB Type-C® to Type-C cable Compliance Test Software for the Anritsu VNA (GRL-USBC-VNAA)

GRL USB Type-C to Type-C cable Compliance Test Software for the Anritsu VNA (GRL-USBC-VNAA)

Overview & Features

Compliance test for USB Type-C®  to Type-C Cable

Product Overview

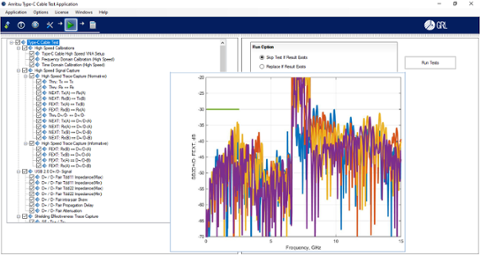

GRL’s USB Type-C to Type-C cable Compliance Test Software (GRL-USBC-VNAA) provides an automated, simple, and efficient way to test USB Type-C to Type-C cable per requirements of the USB Type-C Compliance Testing MOI. The GRL-USBC-VNAA application automates USB Type-C to Type-C cable measurements run on any Windows 7+ OS-based PC.

Key Features

  • Automate USB Type-C to Type-C cable testing using MS46524B Series Performance Vector Network Analyzer.
  • Minimize human intervention to complete USB Type-C to Type C tests.
  • Simple setup, test executions and reporting in pdf format.
  • Customizable stress testing test plan (Required GRL kayaQ Framework license)

Application Specifications

  • Anritsu MS46524B Series Performance Vector Network Analyzer with the following option (MS46524B-020)
    • Anritsu TOSLKF50A-20 Coaxial Calibration Kit
  • Luxshare-ICT Calibration Kits (TFU-31C4R or TFU-23C4R)
    • 28K50A Precision Termination, DC to 40 GHz, K(m), 50 Ω 4 terminations required
  • Luxshare-ICT USB Type-C High Speed Test fixtures (Gen I and Gen II) (TFU-23R2R)
  • Luxshare-ICT USB Type-C Low Speed Test fixtures(TFU-24R3R)
  • Lushare-ICT USB Type-C to Legacy Test fixtures
    • USB 2.0 Micro B Plug(TFU-25P4R)
    • USB 2.0 Mini B Receptacle(TFU-26R4R)
    • USB 3.1 Micro B Receptacle(TFU-14R4R)
    • USB 3.1 Type A Plug(TFU-12P4R)
    • USB 3.1 Type A Receptacle(TFU-12R4R)
    • USB 3.1 Type B Receptacle(TFU-19R4R)

Options & Accessories

GRL-USBC-VNAA - User Defined Calibration and Test Automation Software *Prices are subject to change without notice. *Prices are subject to change without notice.

Download & Purchase

Contact GRL or your local Tektronix Sales Representative to request a demo and trial license of User Defined Calibration and Test Automation Software (GRL-USBC-VNAA).

Other Products

USB Power Delivery and Type-C® Tester and Analyzer (GRL-USB-PD-C2)
USB Power Delivery and Type-C® Tester and Analyzer (GRL-USB-PD-C2)

GRL-USB-PD-C2: The only instrument you need for USB Type-C® Power Delivery and Alt Mode compliance testing.

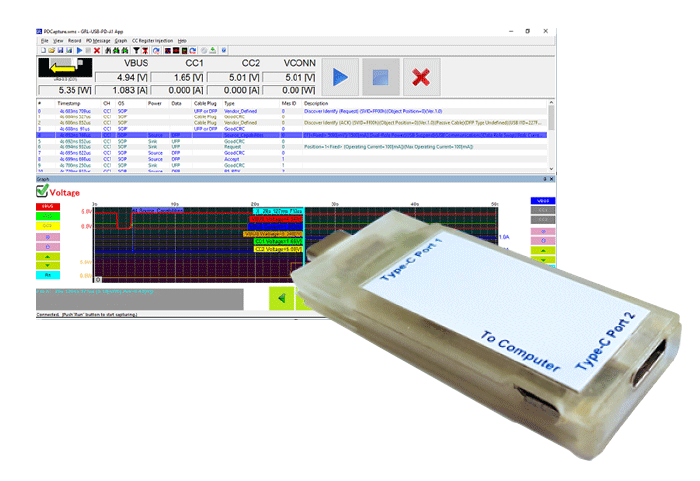

USB Type-C® Power Delivery Performance Analyzer (GRL-USB-PD-A1)
