PCI Express® 6.0 Base & CEM Specification Receiver Test Automation Solution for the Anritsu MP1900A BERT (GRL-PXE6-RXA)

Overview & Features

See also GRL PCI Express Transmitter test solution for Keysight and Tektronix scopes (GRL-PXE-TX)
and GRL PCI Express® PLL Test Automation Solution for the Anritsu MP1900A BERT and Tektronix and Keysight scopes (GRL-PXE-PLL).

Quickly test your Design to the PCIe® Base and CEM Specifications for PCIe 6.0 Receivers.

Overview

  • Automates PCIe® 6.0 (64GT/s) Base and CEM Spec testing
  • Perform Base and CEM Receiver Jitter Tolerance testing at the push of a button
  • Perform PCIe® TX and RX Link Equalization (Link EQ) tests at 64GT/s
  • Reduce technical risk using an industry-accepted calibration methodology
  • Achieve consistent results with rapid test execution

Description

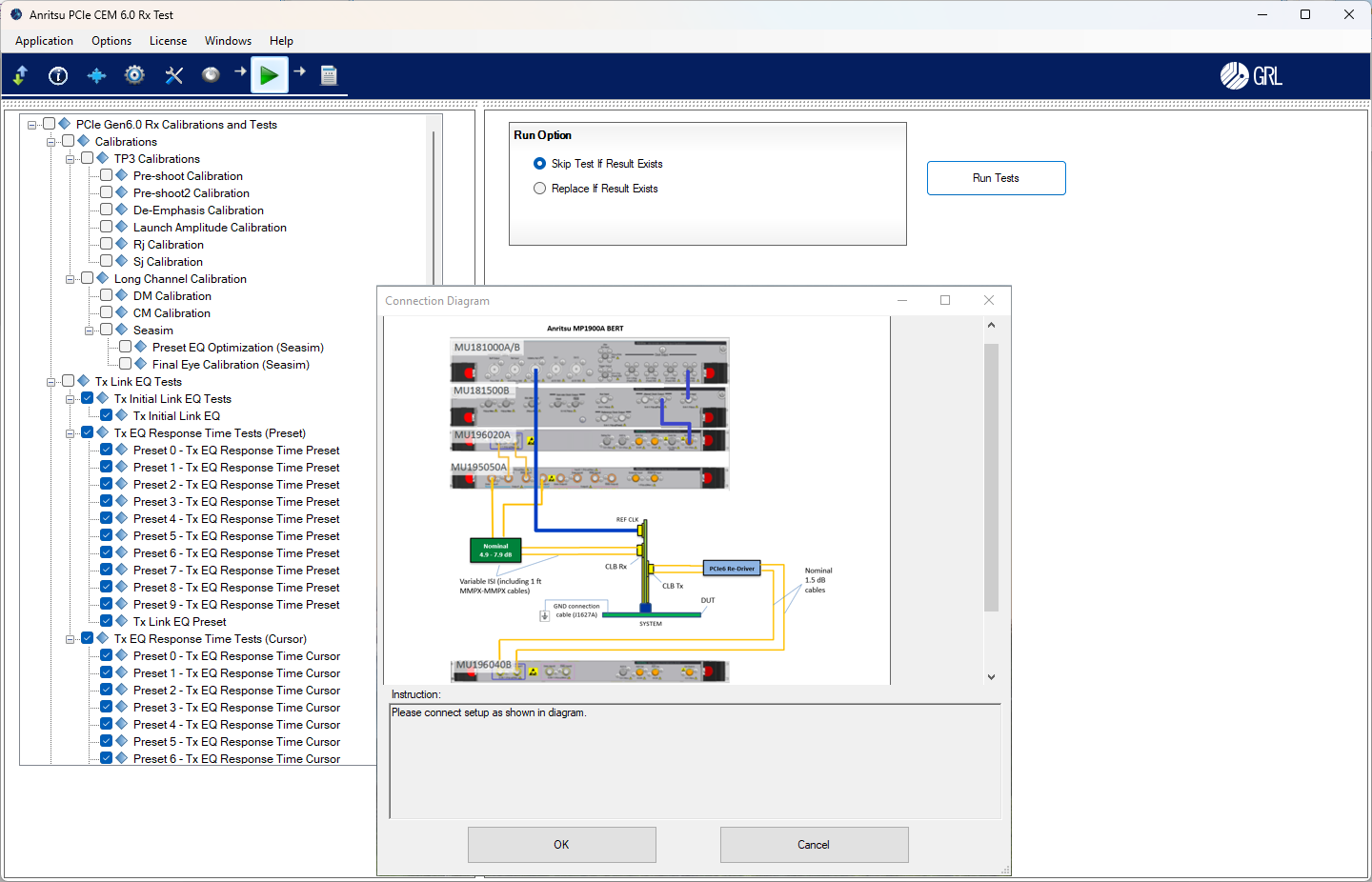

The GRL PCI Express® 6.0 Receiver Test Automation Software Suite (GRL-PXE6-RXA) provides an automated, simple and efficient way to test your PCIe® 6.0 Host and Add-In Card designs using the Anritsu MP1900A BERT with any Tektronix or Keysight Real-Time Oscilloscope. GRL-PXE6-RXA features two components that can be ordered separately or together: GRL-PXE6-RXA for testing your PCIe® 6.0 Receiver to the Base (ASIC) Specification, and GRL-PXE6-CEM-RXA for testing end products to the PCIe® 6.0 CEM (Card Electro-Mechanical) Specification. GRL-PXE6-RXA provides a simple user interface to automate complex PCIe® testing, and significantly reduces equipment calibration and test time. The software runs on a Windows 7 or higher oscilloscope or PC. BASE-RXA and CEM-RXA stressed Receiver eye uses the Seasim and SigTest statistical data eye simulators for all stressed eye impairments. CEM-RXA also works with PCIe CEM CLB/CBB fixtures and supports PAM4 signaling and FEC. Jitter Tolerance and Margin Testing are offered in both versions. GRL-PXE6-RXA also automates LTSSM training into loopback mode for RX Link EQ BER Measurement and TX Link EQ Tests.

Key Features

  • Automated calibration of signal impairments to achieve stressed Receiver Eye Height and Eye Width, in accordance with PCIe® 6.0 Base & CEM Specification
  • Uses Industry Standard tools Seasim and SigTest for Stressed Signal Calibration
  • Automated Receiver Compliance and Jitter Tolerance and Margin testing
  • Using spec-defined or user-defined Jitter Frequency steps
  • Performs all CEM CTS Tests in single Software Framework
  • Simple setup, test execution, and reporting in PDF files
  • Fully configurable and customizable

Options & Accessories

GRL-PXE6-BASE-RXA - PCIe® 6.0 (64 GT/s) Base Specification Receiver Test Software
GRL-PXE6-CEM-RXA
- PCIe® 6.0 (64 GT/s) CEM Specification Receiver Test Software
GRL-PXE6-RXA - PCIe® 6.0 (64 GT/s) Base & CEM Specification Receiver Test Software
GRL-PXE6-XXX-RXA - FLT adds floating license through USB Dongle

Contact GRL for a formal quote and pricing

Download & Purchase

GRL PCI Express® 6.0 Base Specification Receiver Test Automation Software (GRL-PXE6-BASE-RXA).
Download Link

PCI Express® Card Electromechanical (CEM) 6.0 Receiver Test Automation Software for the Anritsu MP1900A BERT (GRL-PXE6-CEM-RXA).
Download Link
