GRL PCI Express® PLL Test Automation Solution for the Anritsu MP1900A BERT and Tektronix and Keysight scopes (GRL-PCIE-PLL)

Overview & Features

Quickly test your Design to the PCIe® 5.0 Specification

Product Overview

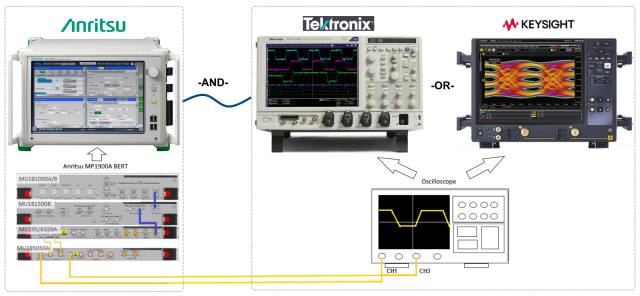

GRL’s PCI Express PLL Solution (GRL-PCIE-PLL) provides full automation of PCIe 5.0 and earlier Phase Lock Loop Bandwidth and Peaking, a mandatory test for PCIe CEM (Card Electro-Mechanical). The solution is compatible with Tektronix and Keysight oscilloscopes paired with the Anritsu MP1900A Signal Quality Analyzer.

GRL’s complete PCI Express test automation solution also includes:

  • GRL-PCIEF-TX PCIe Transmitter Software
  • GRL-PCIE5-RXA PCIe 5.0 Receiver Calibration and Test Software for the Anritsu MP1900A Signal Quality Analyzer & Tektronix or Keysight scope
  • GRL-PCIE-P1 Transmitter Test Automation Controller

Key Features

  • Fully Automated Mode
    • Tests PCIe 5.0 and legacy PLL Bandwidth and Peaking at the push of a button. Fully automates Preset Toggle with the GRL-P1 controller (sold separately).
  • Multi-Equipment Compatibility
    • Compatible with Tektronix and Keysight oscilloscopes paired with the Anritsu MP1900A BERT for PLL test automation.
  • High Flexibility
    • Easily integrates with switch matrix, power supply and temperature control equipment for fast multi-lane stress testing.
  • Fully Configurable
    • Provides various user configuration of both standard and custom settings to accommodate different test environments.
  • Versatile & Cost Effective
    • Affordable test solution that uses the same equipment used from PCIe CEM Receiver testing. No separate clock recovery instrument required.
  • User-friendly
    • Runs directly on the oscilloscope or remotely on a Win7+ PC. Automatically sets up the scope and captures the required waveforms. Report generation is easy.
  • Easy Setup & Test
    • With just a simple setup, GRL-PCIE-PLL allows consistent results to be achieved with rapid test execution and reporting in PDF & CSV format.

Options & Accessories

GRL-PCIE-PLL -GRL PCIe PLL Test Software - Supports PCIe 5.0 and all earlier data rates (32, 16, 8, 5, and 2.5 GT/s)
GRL-PCIE5F-TX -GRL PCIe Transmitter Test Software - Supports PCIe 5.0 and all earlier data rates (32, 16, 8, 5, and 2.5 GT/s)
GRL-PCIE5-TX -GRL PCIe Transmitter Test Software - Supports PCIe 5.0 32 GT/s only
GRL-PCIE34-TX -GRL PCIe Transmitter Test Software – Supports PCIe 4.0 and earlier data rates (16, 8, 5, and 2.5 GT/s)
GRL-PCIE-P1 -GRL PCIe Transmitter Test Automation Controller - Optional hardware for fully automated test sequencing with GRL-PCIE-TX software

For a formal quote and pricing information, contact info@graniteriverlabs.com.

Download & Purchase

Contact GRL to request a demo of GRL’s PCI Express® PLL Test Automation Solution (GRL-PCIE-PLL).
