GRL DisplayPort 2.0 Receiver Calibration and Test Automation for the Anritsu MP1900A BERT and Tektronix and Keysight scopes (GRL-DP21-SINK-AN)

Overview & Features

An automated and efficient way to test your DisplayPort 2.0 Sink Device

Product Overview

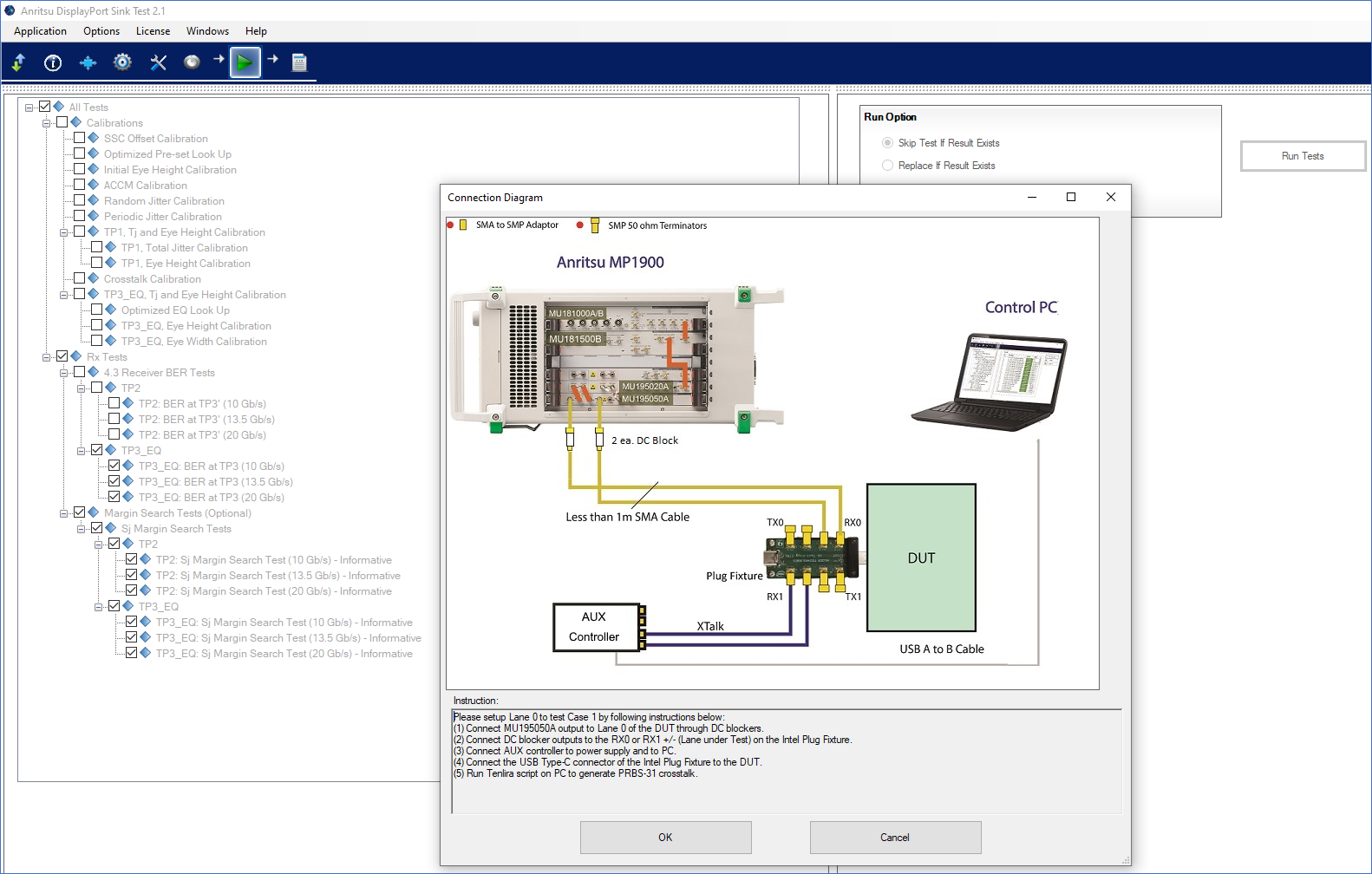

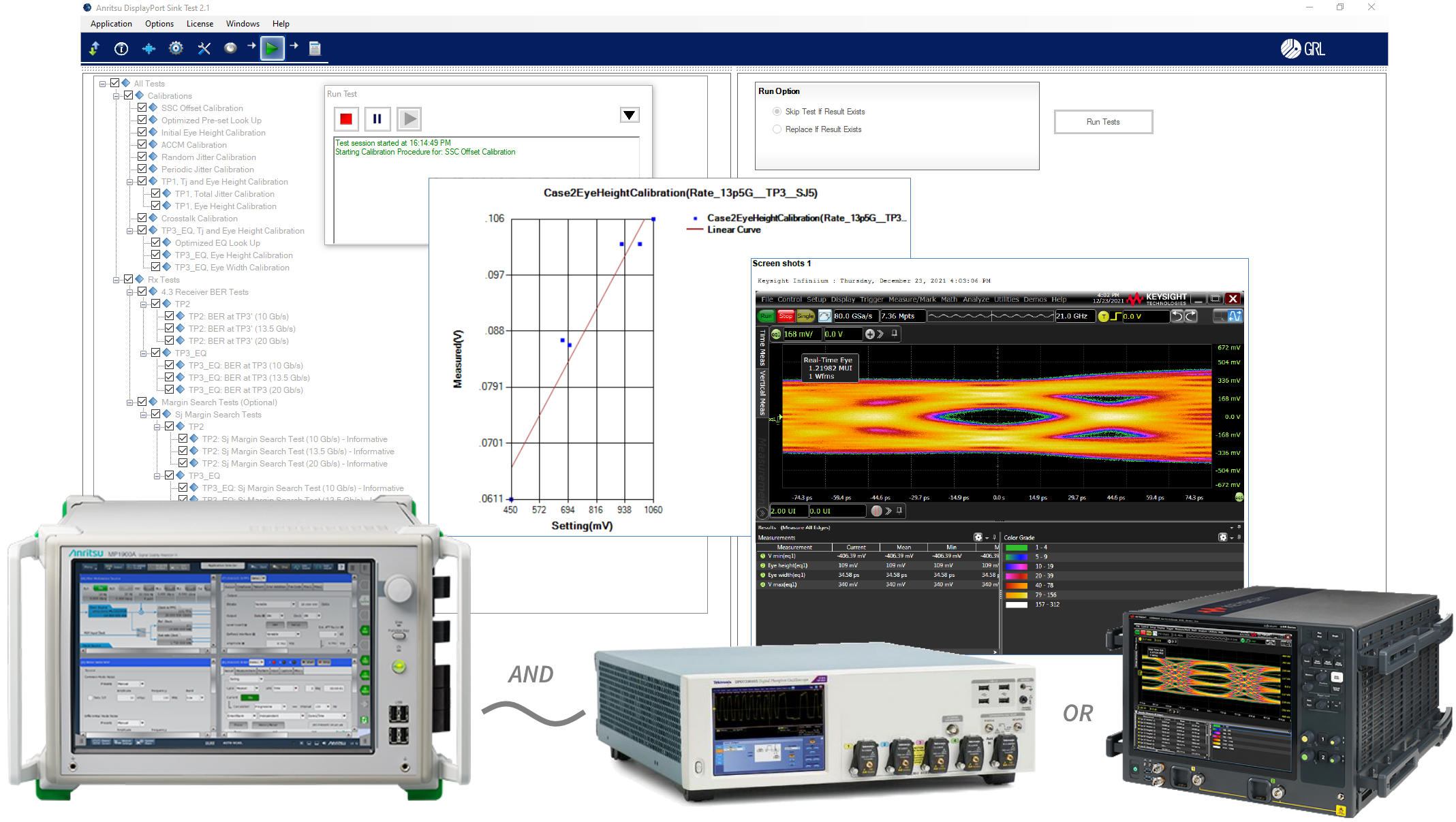

GRL’s DisplayPort 2.0 Receiver Calibration and Test Automation Solution (GRL-DP21-SINK-AN) provides full compliance automation to test Sink products to the DisplayPort 2.0 standard. The solution is compatible with Tektronix and Keysight oscilloscopes paired with the Anritsu MP1900A BERT for calibrating the stressed eye opening and testing receiver jitter tolerance, BER, and jitter margin.

GRL’s easy-to-use software automates complex stressed signal calibration to ensure consistency and repeatability with maximum efficiency and equipment flexibility.

GRL’s complete DisplayPort 2.0 test automation solution includes:

  • GRL-DP21-TX DisplayPort 2.0 Transmitter Test Automation Software
  • GRL-DP21-SINK-AN DisplayPort 2.0 Receiver Calibration & Test Automation Software for the Anritsu MP1900A BERT & Tektronix or Keysight scope

Key Features

  • Fully Automated Mode
    • Calibrates, tests and debugs DisplayPort 2.0 Receivers at the push of a button. Fully automates Receiver Compliance and Jitter Tolerance and Margin testing (test to failure) using spec or user-defined Jitter Frequency steps at UHBR10, UHBR13.5 and UHBR20. Automatically calibrates Stressed Eye conditions defined in the CTS at all required Sinusoidal Jitter (SJ) frequencies, and automates BER testing.
  • Multi-Equipment Compatibility
    • Compatible with Tektronix and Keysight oscilloscopes paired with the Anritsu MP1900A BERT for calibrating the stressed eye opening and testing receiver jitter tolerance, BER, and jitter margin.
  • High Flexibility
    • Automates the Anritsu MP1900A BERT as a Sinusoidal Jitter source generator and the Keysight and Tektronix oscilloscope to emulate the clock recovery function. Also easily integrates with switch matrix, power supply and temperature control equipment for fast multi-lane stress testing.
  • Fully Configurable
    • Fully integrated with high-speed test fixtures and AUX controller available from Wilder Technologies (sold separately).
  • Versatile & Cost Effective
    • Affordable test solution with debug function helps users obtain reliable and repeatable results.
  • User-friendly
    • Runs directly on the oscilloscope or remotely on a Win7+ PC. Automatically sets up the scope and captures the required waveforms. Report generation is easy.
  • Easy Setup & Test
    • With just a simple setup, GRL-DP21-SINK-AN allows consistent results to be achieved with rapid test execution and reporting in PDF & CSV format.

Options & Accessories

GRL-DP21-SINK-AN - GRL DisplayPort 2.0 Receiver Calibration & Test Software for the Anritsu MP1900A BERT and Keysight and Tektronix Scopes - Supports UHBR10, UHBR13.5, and UHBR20
GRL-DP21-TX - GRL DisplayPort 2.0 Transmitter Test Software - Supports UHBR10, UHBR13.5, and UHBR20
GRL-DP21-TXRX -Bundled TX & RX solution: GRL DisplayPort 2.0 Transmitter & Receiver Calibration and Test Software

For a formal quote and pricing information, contact info@graniteriverlabs.com.

Download & Purchase

Contact GRL to request a demo of GRL’s DisplayPort 2.0 Receiver Calibration and Test Automation Solution (GRL-DP21-SINK-AN).

Other Products

GRL-DP21-TX-1

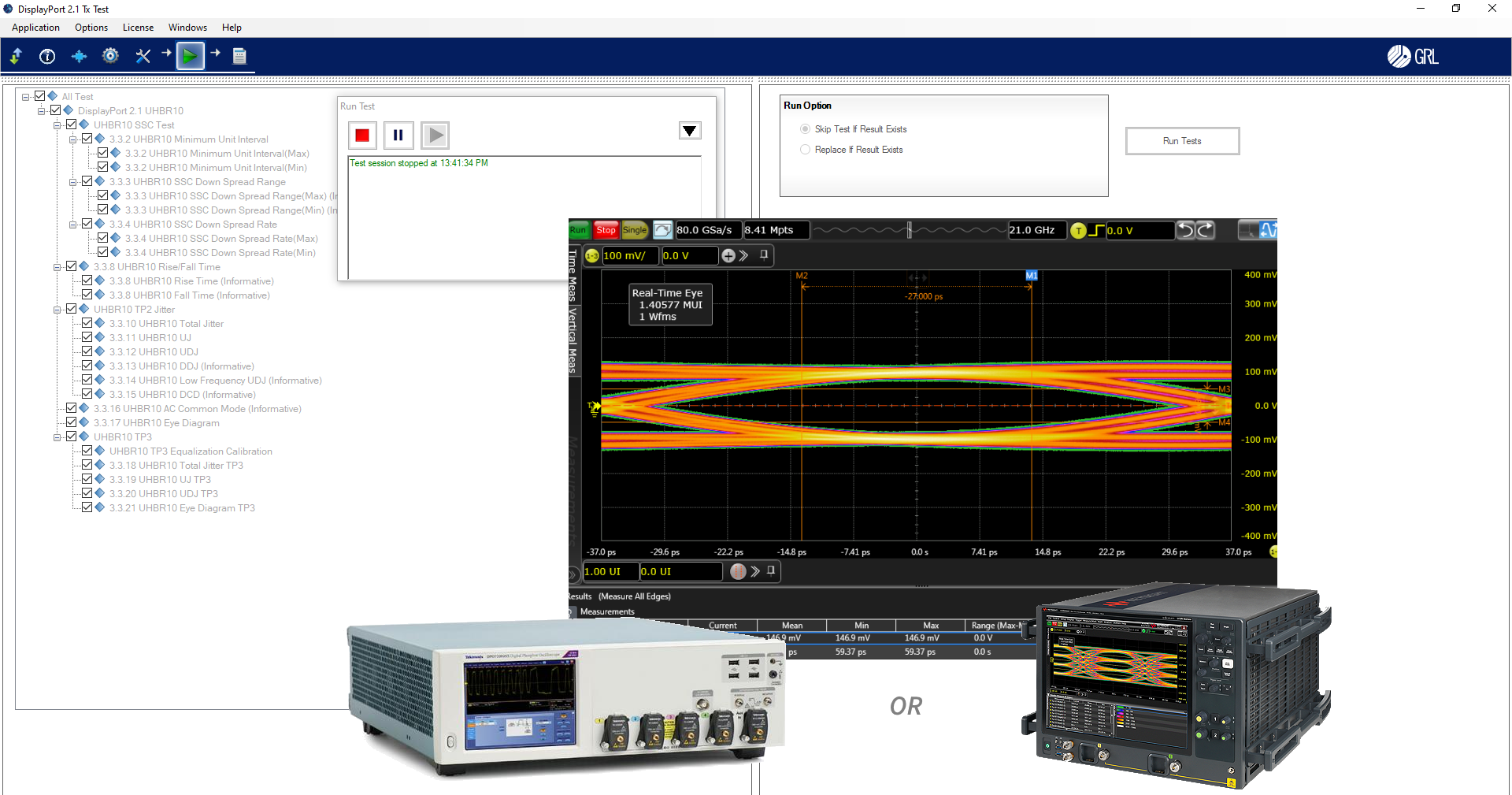

GRL DisplayPort 2.0 Transmitter Test Automation Solution for Tektronix and Keysight scopes (GRL-DP21-TX)
