USB 3.2 Receiver Calibration and Test Automation Software for the Anritsu MP1900A BERT (GRL-USB32-RXA)

mp1900-transparent-2

Overview & Features

Quickly test your Receiver BER and Jitter Margin to the USB 3.2 Gen1 and Gen2 CTS

Description

GRL’s USB 3.2 Receiver Calibration and Test Automation software for the Anritsu MP1900A (GRL-USB32-RXA) provides an automated, simple and efficient way to test your USB 3.2 Gen1 (5G) and Gen2 (10G) Receiver.

GRL-USB32-RXA automates the Anritsu MP1900A BERT and Keysight or Tektronix real-time oscilloscope to calibrate the stressed eye opening and test receiver compliance and jitter tolerance. Following the standard test methodology outlined in the USB 3.2 Electrical Compliance Test Specification, GRL-USB32-RXA provides a simple user interface to automate complex USB testing. The software runs on any Windows 7+ PC or oscilloscope, and significantly reduces equipment calibration time.

GRL-USB32-RXA supports USB 3.2 Gen1 (5Gb/s) and Gen2 (10Gb/s) data rates. Including test setups for USB Type-C®, or USB Type-A/B Connectors. The software guides the user through complex setups required by the CTS for the BERT, USB-IF Test Fixtures, Oscilloscope, and Device Under Test. The Software automatically calibrates Amplitude and Pre-Emphasis; then Jitter and Eye parameters using USB-IF SigTest software. After calibration, GRL-USB32-RXA automates loopback negotiation and Symbol Error Rate (SER) using the built-in capabilities of the MP1900A3.2.


Key Features

  • Support USB 3.2 Gen1 (5 Gb/s) and Gen2 (10 Gb/s) Host and Device receiver jitter tolerance tests
  • Automated calibration of signal impairments to achieve stressed Receiver Eye Height and Eye Width in accordance with USB 3.2 Specification using SigTest
  • Connection diagrams for all Host/Device, USB Type-C or Type-A/B Connector Types using USB-IF 3.2 test fixture kits
  • Simple setup, test execution, and reporting in PDF files
  • Fully configurable and customizable
  • Automation of BERT functions Including: transmit and receive LFPS and LBPM signals; transition Host and Device status to loopback; insert and identify Skip Ordered Set; measurement of BER using Compliance Test Pattern

Options & Accessories

GRL-USB32-RXA – Granite River Labs USB 3.2 Receiver Calibration and Test Automation Software Prices are subject to change without notice.

Download & Purchase

USB 3.2 Receiver Calibration and Test Automation Software (GRL-USB32-RXA).
Download Link

Other Products

 USB4® Receiver Calibration and Test Automation Software for the Anritsu MP1900A BERT (GRL-USB4-RXA)
USB4® Receiver Calibration and Test Automation Software for the Anritsu MP1900A BERT (GRL-USB4-RXA)

Quickly test your Receiver BER and Jitter Margin to the USB4® CTS with the Anritsu MP1900A BERT and Keysight or Tektronix scope.

 USB4® Transmitter Test Automation Software (GRL-USB4-TX)
USB4® Transmitter Test Automation Software (GRL-USB4-TX)

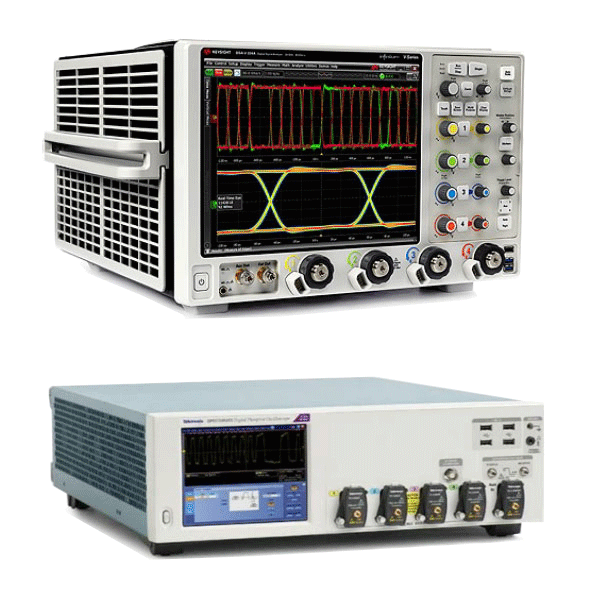

Quickly test your Transmitter to the USB4® CTS using Keysight or Tektronix real-time scope.
