UHS-II Protocol Decode Software (GRL-UHSII-DEC)

UHS-II Protocol Decode Software (GRL-UHSII-DEC)-1

Overview & Features


GRL-UHSII-DEC provides detailed data packet descriptions with bit-level information, as well as raw data and payload. In UHS-II, the D0 and D1 data lanes are bi-directional and the flow can be changed based on a request from the Host. GRL’s proprietary Intelligent Decode Algorithm identifies the flow control direction and provides a pictorial representation of Full Duplex and 2D- Half duplex mode switch. Auto identification of range change makes analysis easy, and GRL-UHSII-DEC’s split protocol analysis feature helps you intuitively find the relationship among various events in D0 and D1. GRL-UHSII-DEC also provides easy-to-place Bus Diagram Markers to measure the time difference between various events in UHS-II protocol, and a comprehensive search function that makes finding unique protocol events exceptionally easy and quick.

Key Features

  • Conformance to SD Physical Layer Specification Version 4.20, UHS-II Addendum Version 1.10
  • Decodes D0 and D1 and provides single time-correlated protocol details
  • Simultaneous D0 and D1 lanes protocol analysis
  • Oscilloscope auto setup
  • Decodes live and offline waveforms
  • De-Scrambles transmitted data
  • Provides detailed description of CCMD, DCMD, DATA, MSG and RES packets
  • Lists Link Symbol Set (LSS) along with packet information
  • Detailed data packet description
  • Intelligent Decode Algorithm identifies the direction switch and provides a pictorial representation of Full Duplex and 2D-Half Duplex mode switch
  • Range Change Auto Identification
  • Easy to place Bus Diagram Markers
  • Comprehensive search function
  • Automated report generation - PDF, CSV, and TXT

Application Specifications

This application is compatible with
  • Keysight Technologies 90000 X-Series, 9000, 90000, and 90000QSeries oscilloscope models.
  • Tektronix MSO/DPO70000 Digital & Mixed Signal Oscilloscopes models

Options & Accessories

GRL-UHSII-DEC UHS-II Protocol Decode Software GRL-UHSII-TPA UHS-II Interposer Board (sold separately). Prices are subject to change without notice.

Contact GRL for a formal quote and pricing.

Download & Purchase

GRL UHS-II Protocol Decode Software (GRL-UHSII-DEC) 10-Day Trial License
Download Link

Download GRL UHS-II Protocol Decode Software (GRL-UHSII-DEC)

How to Download
Click the download button and save the file to a temporary directory on your PC.

How to Install
On your PC or Oscilloscope, open (execute) the downloaded file, and follow the on-screen installation instructions.  More instructions are available in the Quick Start Guide.

Supporting Documentation
GRL-UHSII-DEC GRL  Protocol Decode Software Quick Start Guide (ver. 1.0)

Download GRL-UHSII-DEC GRL  Protocol Decode Software Quick Start Guide (ver. 1.0)

Other Products

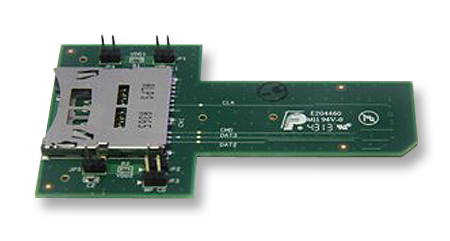

UHS-II Interposer Board (GRL-UHSII-TPA)
