DisplayPort 1.2b PHY Sink Calibration and Test Software for the Tektronix BertScope™ BSA or AWG7122C Arbitrary Waveform Generator


Overview & Features

Quickly run PHY CTS1.2b or characterize the electrical performance of your DisplayPort 1.2 Sink Design

Video Overview

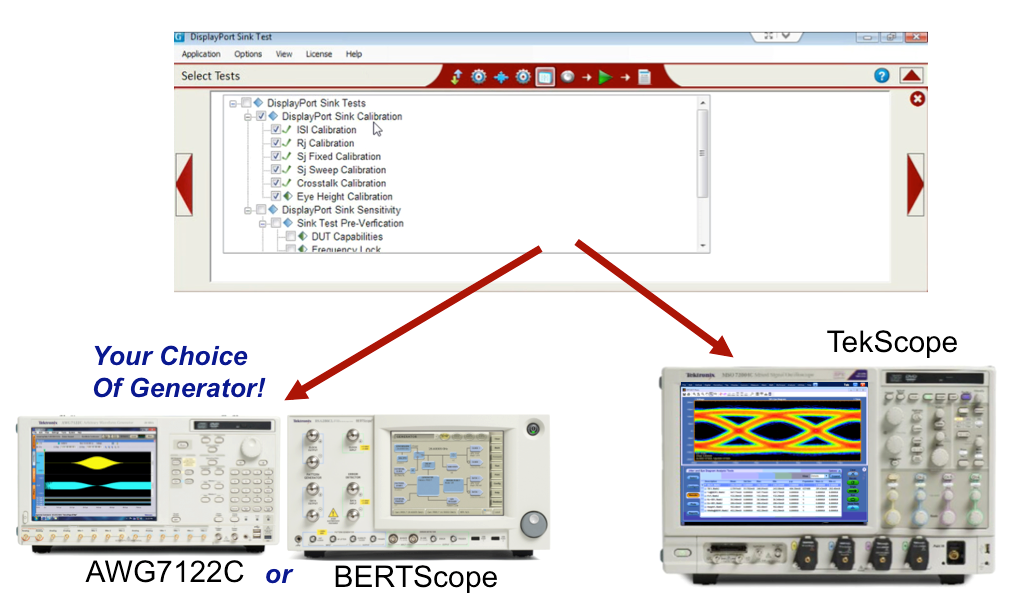

GRL’s DisplayPort Sink Test Automation Software for the Tektronix BERTScope (GRL-DP-SINK) or AWG7122C (GRL-DP-SINKA) provides an automated, simple, and efficient way to test DisplayPort Sink (Receiver) devices per the Jitter Tolerance requirements of the DisplayPort Physical Layer Compliance Test Specification (CTS) version 1.2. The GRL-DP-SINK application automates single and multi-lane measurements at all DisplayPort data rates 1.62, 2.7, and 5.4 Gb/s (RBR, HBR, and HBR2), and runs on any Windows 7 or Windows 8 OS-based PC or Oscilloscope.

GRL-DP-SINK eliminates the need for user interaction during testing. GRL-DP-SINK enables automated calibration between the BERTScope and real-time scope to generate stressed-signal conditions for DisplayPort 1.2b PHY CTS Sink Compliance testing.

GRL’s unique DDJ (ISI) calibration feature eliminates the need for fixed ISI boards, and supports multiple test cases without change in setup (Long Channel, Short Channel, No Channel, etc.) GRL-DP12SINK-TEK supports multiple Variable ISI Hardware Solutions, including the Tektronix BertScope DPP125C + LE320 Variable ISI, and Artek CLE1000-A1 Low Frequency Variable ISI.

The combination of GRL-DP-SINK and an AUX Channel Controller (Tektronix DisplayPort DP-AUX or Unigraf DPT-200 Reference Source with AUX Control) automates Link Training and BER validation.

Key Features

  • Automate VESA Method of Implementation (MOI) using Tektronix test equipment
  • Perform DisplayPort 1.2 Sink Jitter Tolerance and Margin testing at the push of a button
  • Achieve consistent results with rapid calibration and test execution
  • Reduce technical risk using an industry accepted calibration methodology
  • Eliminate the need for fixed ISI boards with unique DDJ (ISI) calibration feature

Application Specifications

This application is compatible with all Tektronix BERTScope™ BSA models (8Gb/s or above) and runs on any Windows 7 PC or Oscilloscope.

Options & Accessories

GRL-DP-SINK - GRL DisplayPort Sink Test Automation Software for the Tektronix BERTScope.

GRL-DP-SINKA - GRL DisplayPort Sink Test Automation Software for the Tektronix AWG7122C Arbitrary Waveform Generator.

Prices are subject to change without notice.

Download & Purchase

GRL-DP-SINK DisplayPort 1.2b PHY Sink Calibration and Test Software 10-Day Trial License
Download Link

Download Software - (GRL-DP-SINK)

How to Download
Click the download button and save the file to a temporary directory on your PC.

How to Install
On your PC or Oscilloscope, open (execute) the downloaded file, and follow the on-screen installation instructions.  More instructions are available in the Quick Start Guide.

Download Datasheet
